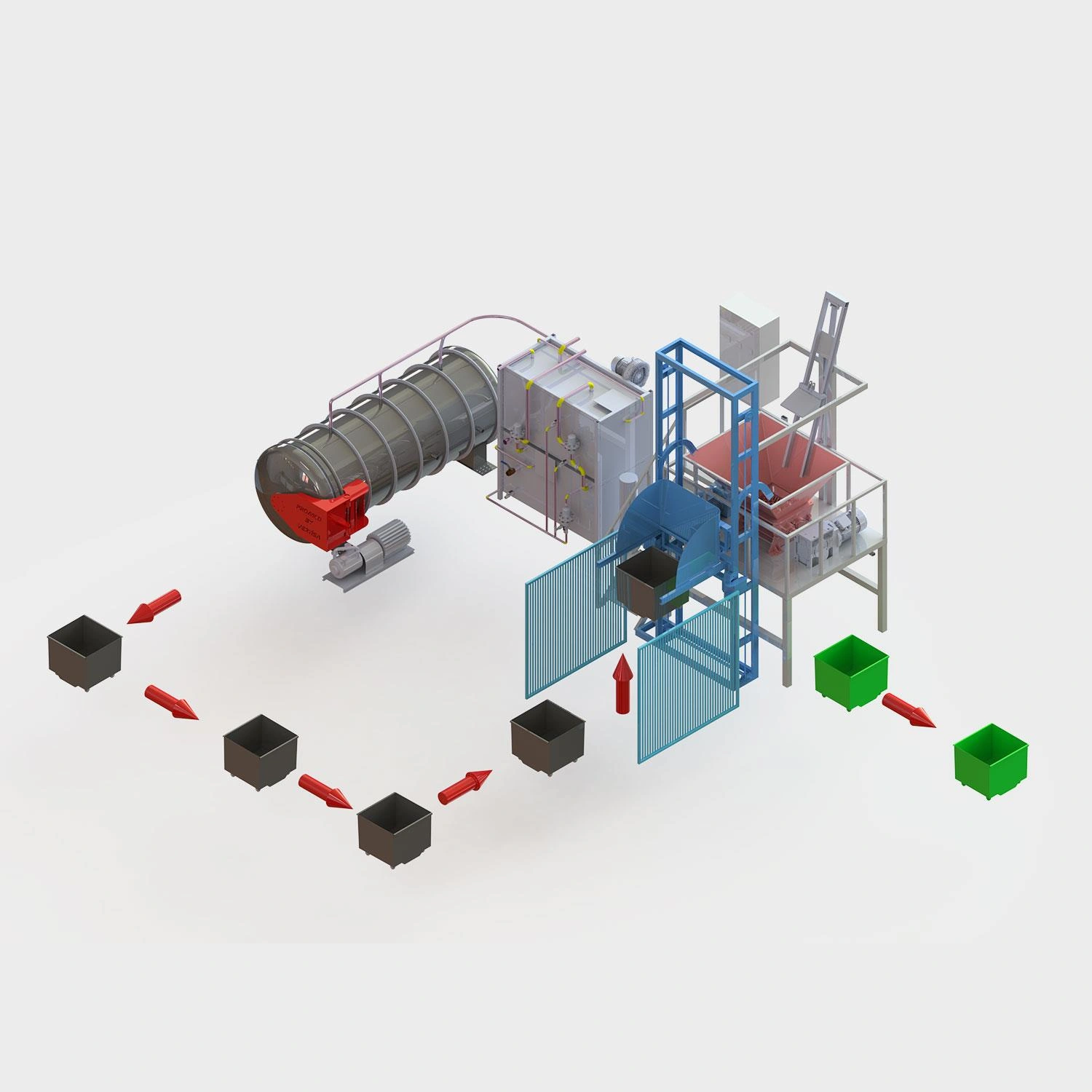

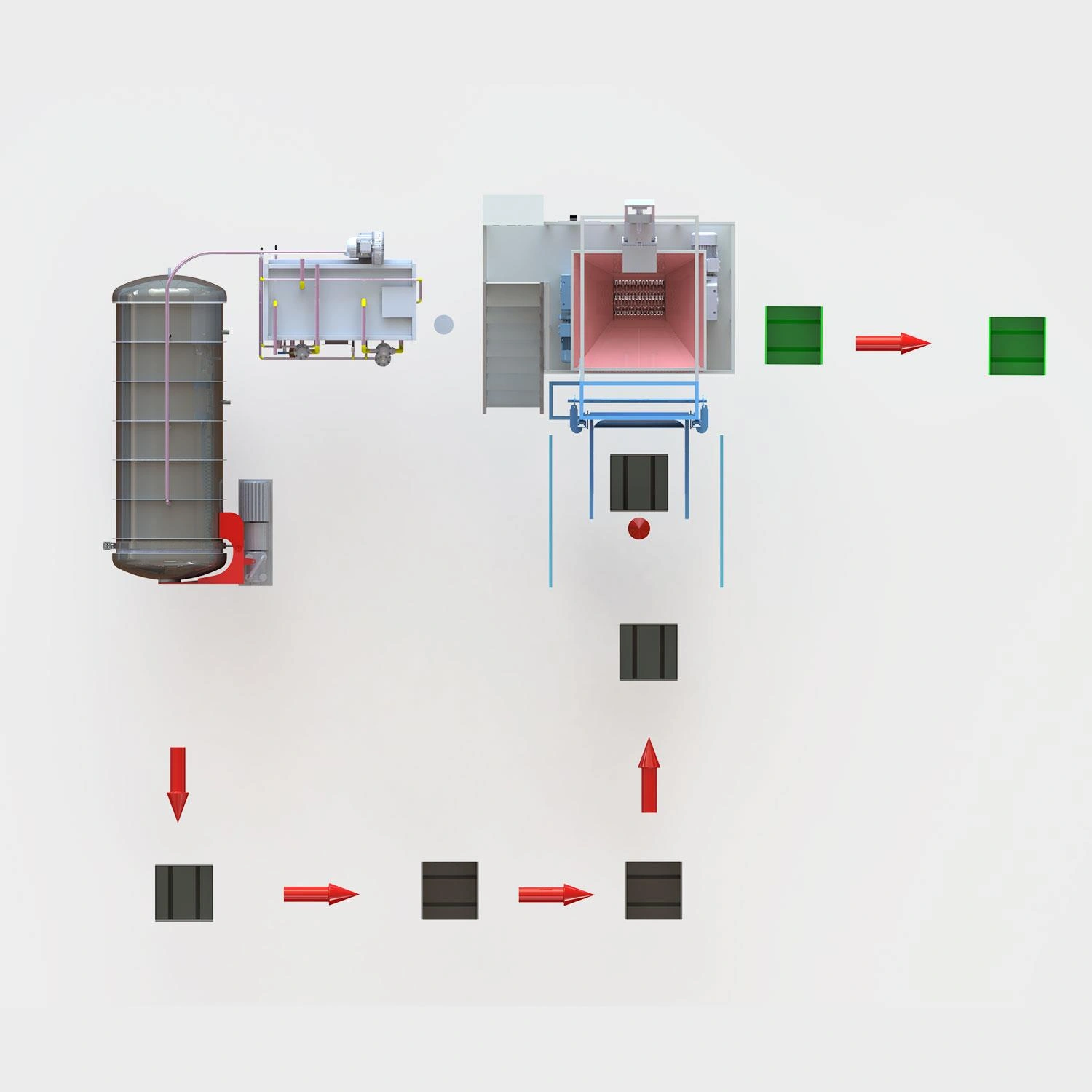

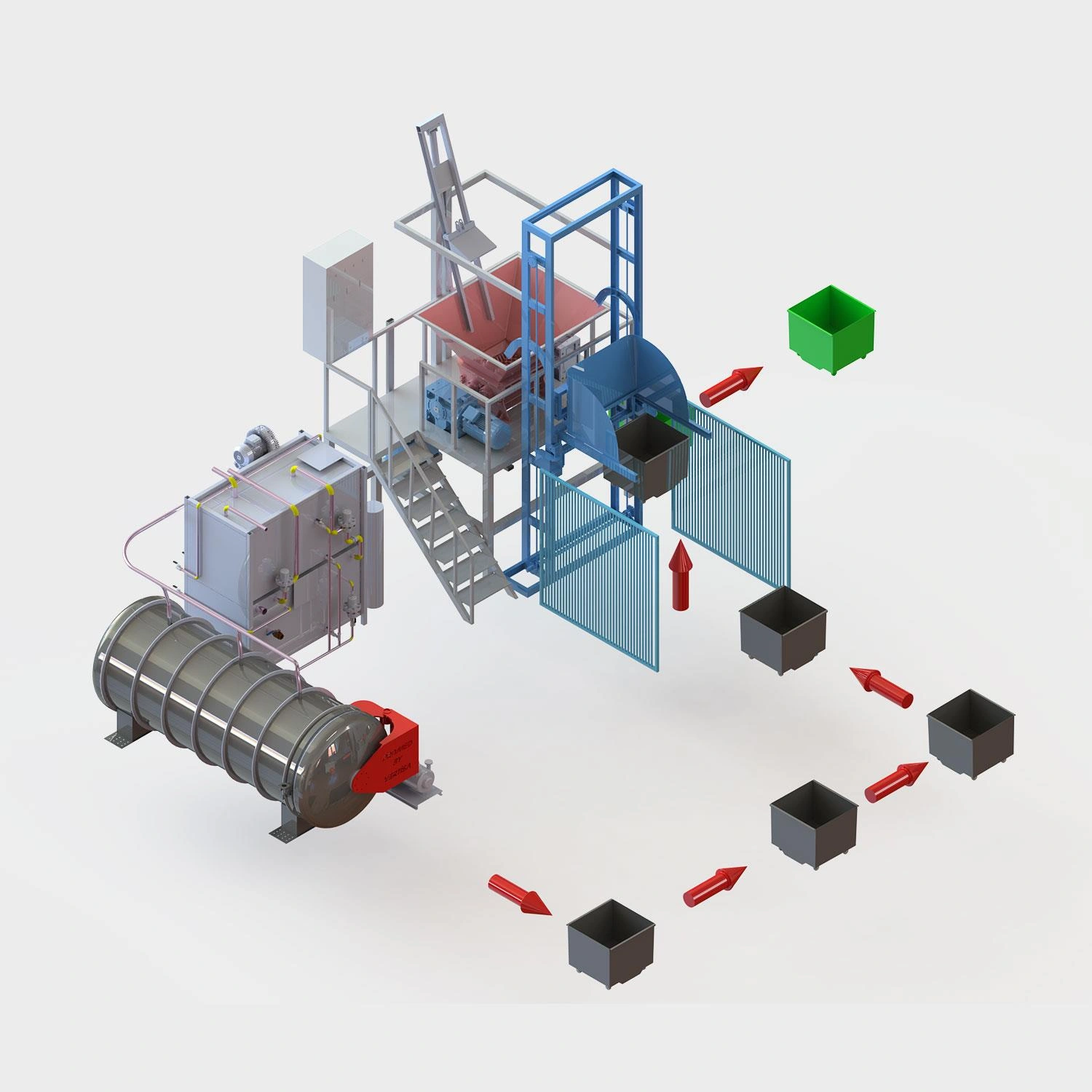

RIOTECH A500
High-Performance Sterilization Systems
Capacity: 500 Kg/hour (1102 Lbs/H)
Application Area: Large-Scale Hospitals and Industrial Sterilization Facilities
Press chamber made of high-quality stainless steel
TÜV Austria-approved design and manufacturing
Manufactured in compliance with EU Directives PED (2014/68/EU), 2006/42/EC, 2014/30/EU, and EN285 EU and EU Standards
Advanced automation control system with enhanced reporting and visualization software
Online access for inspection and fault diagnosis via the internet
Fully automatic operation without the need for any operator intervention
Automatic lift system for easy loading
Zero water consumption
Integrated steam boilers equipped with the latest steam regeneration system, ensuring low fuel and electricity consumption
Technical Specifications
Operating Features
Consumption / Cycle
Dimensions (L x W x H) (mm): 3500 x 2250 x 2250
Weight (Kg): 4600
Steam Pressure (Bar max): 8
Required Electrical Power (Kw): 35*
Sterilization Capacity (Kg/Hour): 500
Processing Volume Capacity (Liters): 3500
Average Waste Density (Kg/m³): 100-150
Average Cycle Time (Minutes): 45
Maximum Steam Flow (Kg/Hour): 670
Sterilization Efficiency (SAL): 8 Log10
Steam (Kg): 45
Electricity (Kw): 11**
Water (Liters): None***
Special Consumables: None
P50 – P100 – P150 models include an integrated steam boiler.
This is the electricity consumption of the sterilizer only.
Water consumption of the integrated steam boiler: 7-12 Liters/Cycle
